ULTRA-LOW TEMPERATURE
FREEZER ROOM
Operates at -80℃ and is on 24/7/365

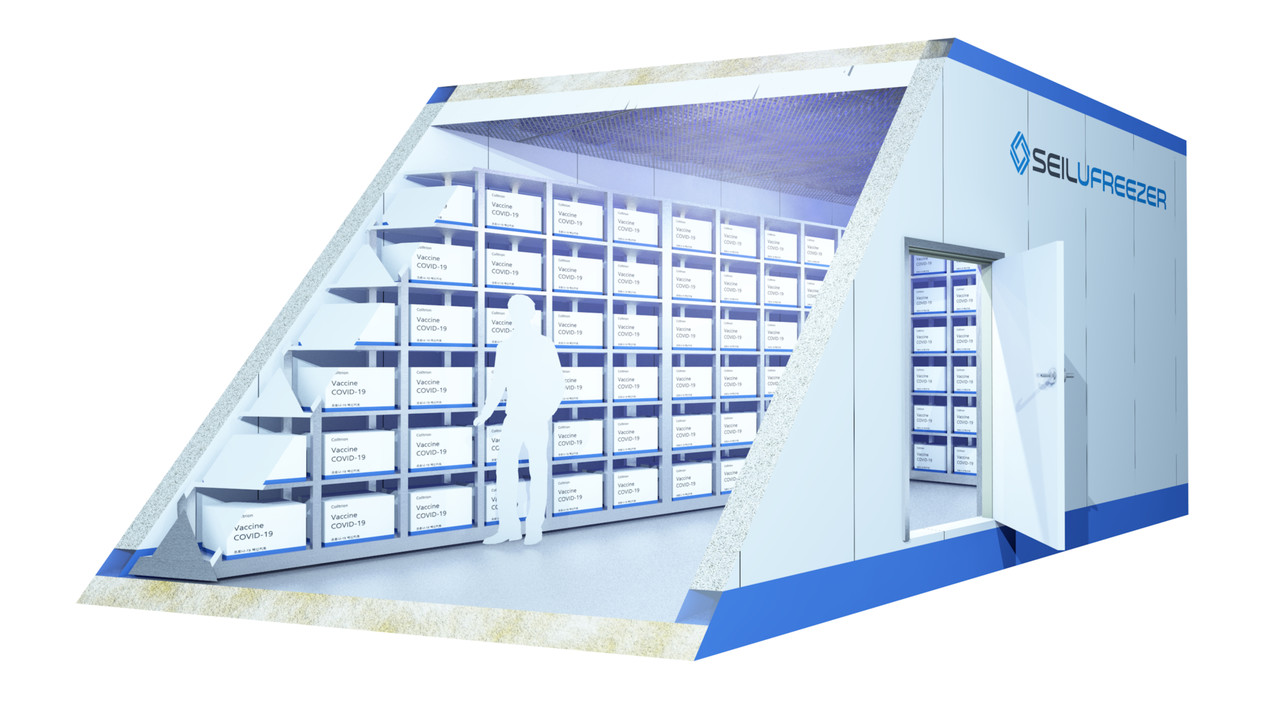

SEILUFREEZER’s -80℃ Cryogenic Freezer Room is state-of-the-art. It uses an eco-friendly mixed refrigerant, custom oil separator, and a proprietary heat exchange system that is the result of many years of R&D.


 Although previously thought to be theoretically impossible, the system utilizes a 2kg/㎡ low-pressure freezer system to produce air at -80℃. The unique system is free from almost all small breakdown issues, and heat is emitted outside via a separate condensing unit.

◎ A REVOLUTIONARY IMPROVEMENT IN VACCINE STORAGE

Biological samples can now be stored in one place with tight temperature control



SEILUFREEZER’s Cryogenic Freezer Room (33㎡) has the same operational capacity of 140 traditional upright ULT freezers (600L). So, when using only 60% of the Cryogenic Freezer Room’s (33㎡) space, you can hold material that would normally require 84 traditional upright ULT freezers (600L).



Countries around the world now need a better way to store and transport COVID-19 vaccines. Our Mobile Cryogenic Freezer Room is the solution to this global challenge. It can be used by laboratories, research centers and many other types of facilities.

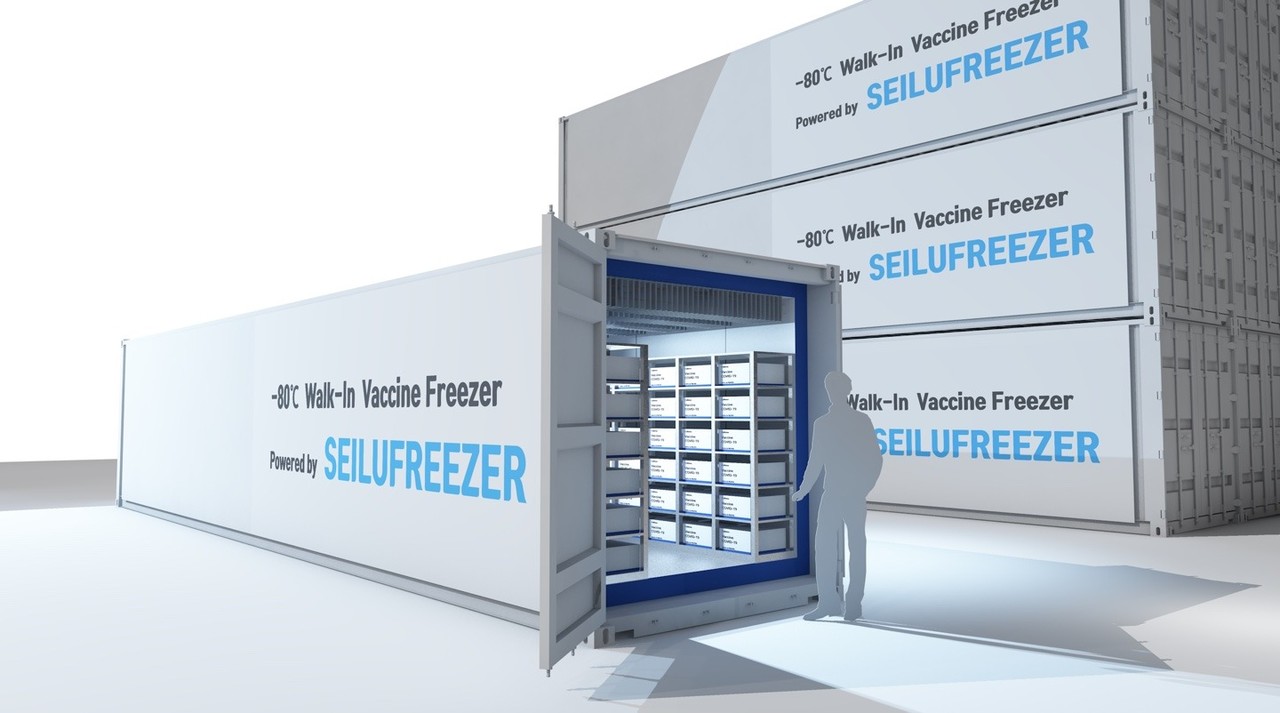

◎ MOBILE CRYOGENIC FREEZER ROOM

Operates at -80℃ and is on 24/7/365 (available for export)



The Mobile Cryogenic Freezer Room is comprised of two freezing systems that maintain a temperature of

-80℃ in a 40 foot shipping container.



The container is a mobile solution and can be used at anytime, anywhere in the world as long as an electrical supply is available.

  Advantages of -80°C cryogenic freezer room


Cryogenic Freezer Room (33㎡) holds amount same as 140 traditional upright ULT freezers (600L)


Dual chiller system that can maintain
-70℃ even if one chiller fails


Mobile Cryogenic Freezer Shipping Container only needs electricity, no on-site installation required (available for export)


Special bare tubing ceiling (copper tubes + aluminum plates) system utilized, which prevents sudden rises in temperature


Validation available (IQ, PQ, PQ)


 Although previously thought to be theoretically impossible, the system utilizes a 2kg low-pressure freezer system to produce air at -80℃


Reliable system that you can depend on
(Uses an eco-friendly mixed refrigerant, proprietary oil separator and heat exchanger)


 Ultra-high density custom-made urethane
panels (150T) for maximized insulation

Cryogenic Freezer Room (33㎡) holds amount same as 140 traditional upright ULT freezers (600L)
Dual chiller system that can maintain -70℃ even if one chiller fails

Mobile Cryogenic Freezer Shipping Container only needs electricity, no on-site installation required (available for export)

Special bare tubing ceiling (copper tubes + aluminum plates) system utilized, which prevents sudden rises in temperature

Validation available (IQ, PQ, PQ)

Although previously thought to be theoretically impossible, the system utilizes a 2kg low-pressure freezer system to produce air at -80℃

Reliable system that you can depend on (Uses an eco-friendly mixed refrigerant, proprietary oil separator and heat exchanger)

 Ultra-high density custom-made urethane panels (150T) for maximized insulation

  -80℃ Cryogenic Freezer Room Product Specification

-80 ℃ cryogenic Freezer Room

-80℃ mobile Freezer Room

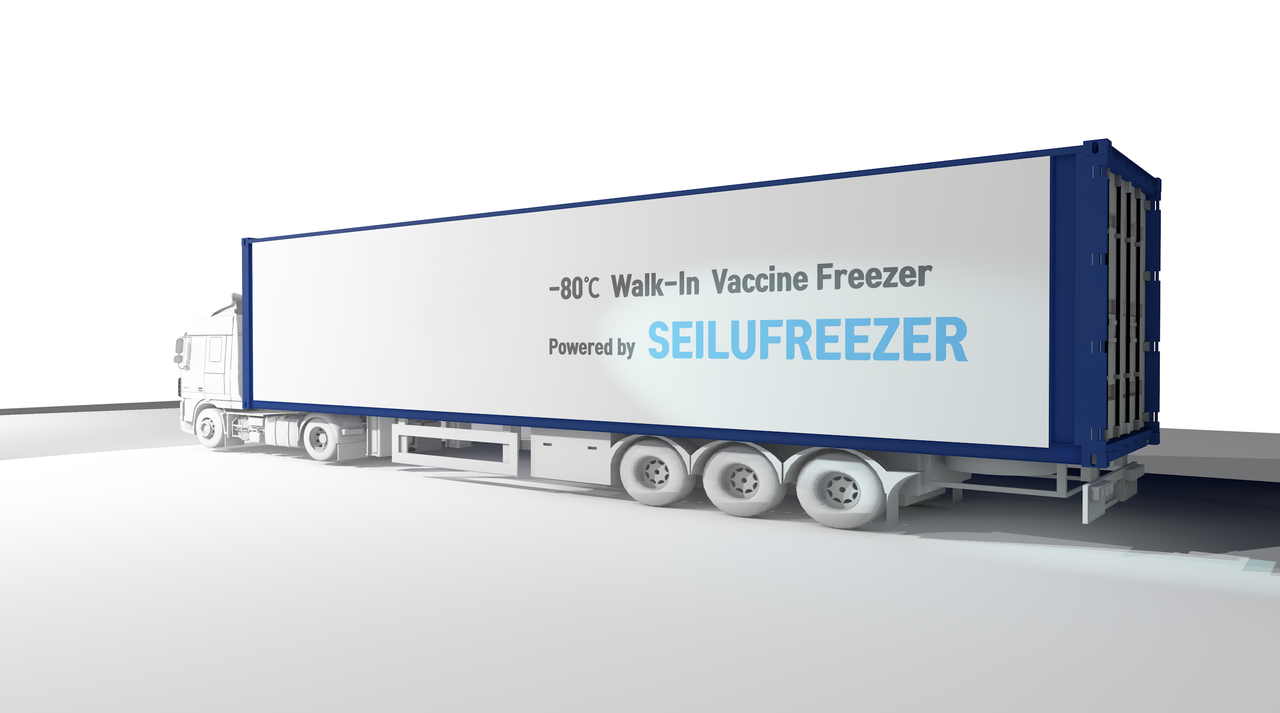

-80℃ Freezer Room on vehicle (to be released)

-80 ℃ cryogenic Freezer Room
-80℃ mobile Freezer Room
-80℃ Freezer Room on vehicle (to be released)
Product Name
Cryogenic freezer room 16㎡
Cryogenic freezer room 33㎡
Cryogenic freezer room 49㎡
Model
UFR-05
UFR-05
UFR-05
Electric
3₵ 380V 60Hz
3₵ 380V 60Hz
3₵ 380V 60Hz
Chamber Size
3700(W) x 4500(L) x 2800(H)mm
The door and chamber sizes are to be consulted
6400(W) x 5400(L) x 3200(H)mm
The door and chamber sizes are to be consulted
8500(W) x 5800(L) x 3200(H)mm
The door and chamber sizes are to be consulted

Power

Consumption

56kw Max (average 25kw)
88kw max (40kw average)
155kw Max (average 65kw)
Ampere
50A x 2
100A X 2
150A X 2
Outdoor size
2000 X 1000 X 2000 2ETS
2400 X 1000 X 2100 2ETS
2400 X 1000 X 2100 2ETS

The door and chamber sizes can be customized.

  CASE STUDY
 -80℃ Cryogenic Freezer Room installation in Korea national institution

Installed of 2 Cryogenic Freezer Rooms at the Korea Research Institute of Standards and Science (used for seed and organic & bio analysis sample storage)

2 Cryogenic Freezer Rooms (33㎡) for a total size of (66㎡)
